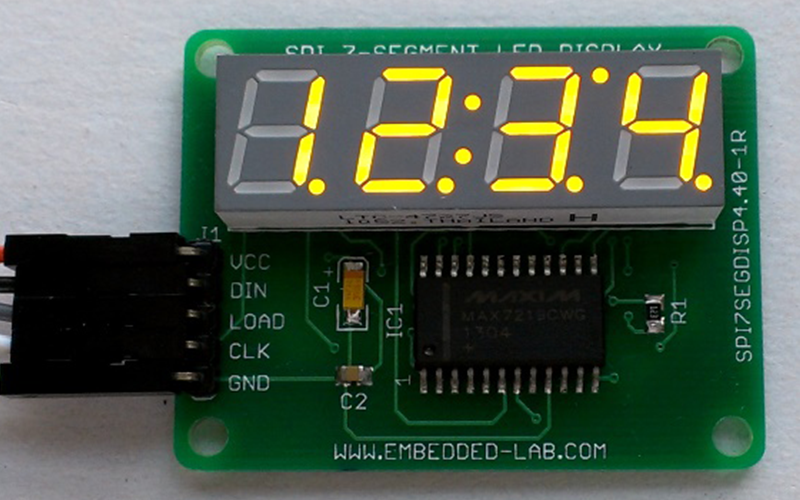

LED Digital Multiplex

LED-based signage and matrix displays are bringing new dimensions of versatility and eye-pleasing visual effects to a growing number of outdoor and indoor applications. Recent advances in LED technology have even made it difficult to distinguish still images on their high-quality displays from traditional printed or painted billboards. In this tutorial, Texas Instruments takes a detailed look at the essential technical principles of LED display systems and the engineering considerations required to design them using arrays of discrete LED lamps.
